  • General
    Model
    T1-S2
    Panel size
    21.5 inch / 23.8 inch
    Resolution
    1920×1080（16:9）
    CPU
    Intel Core  i3、i5、i7
    Intel Celeron
    Intel Pentium
    RAM
    4GB / 8GB / 16GB / 32GB
    SSD
    64GB / 128GB / 256GB / 512GB / 1TB
    HDD
    500GB / 1TB / 2TB
    Multi-Media
    High Definition Audio Codec; Stereo Speaker
    System
    Compatible with Win7/Win10/Win11
    Mechanical
    Product size
    21.5 inch:-
    23.8 inch:540(W)×321(S)×415(H) mm
    Material
    ABS plastic shell、base
    Color available
    Black
    Extensible（Optional）
    Extended interface
    2 × USB2.0
    Camera
    3.0MP/5.0MP/8.0MP（with Mic）Camera
    CD-ROM disk drive
    external USB CD/DVD driver
    Card reader
    Yes
    Connectivity
    Network card
    100/1000Mbps adaptive network card
    WIFI
    150Mbps wireless WiFi
    (433Mbps dual band WiFi and WiFi 6 functions are optional)
    Bluetooth
    Default BT4.2 / Available BT5.0
    Interface
    1 × Power Port
    1 × HDMI
    1 × VGA(COM)
    1 × LAN
    4 × USB
    1 × Audio Out
    1 × Mic in
    Power adapter
    input：100-240v AC， 50/60Hz universal；
    Package（1 unit）
    Accessories
    Power cable,Power adaptor
    Package size
    23.8inch:610(W)×175(D)×470(H)mm
    Weight
    23.8inch:8.05kg

  • 01

• Optional optical driver / card reader

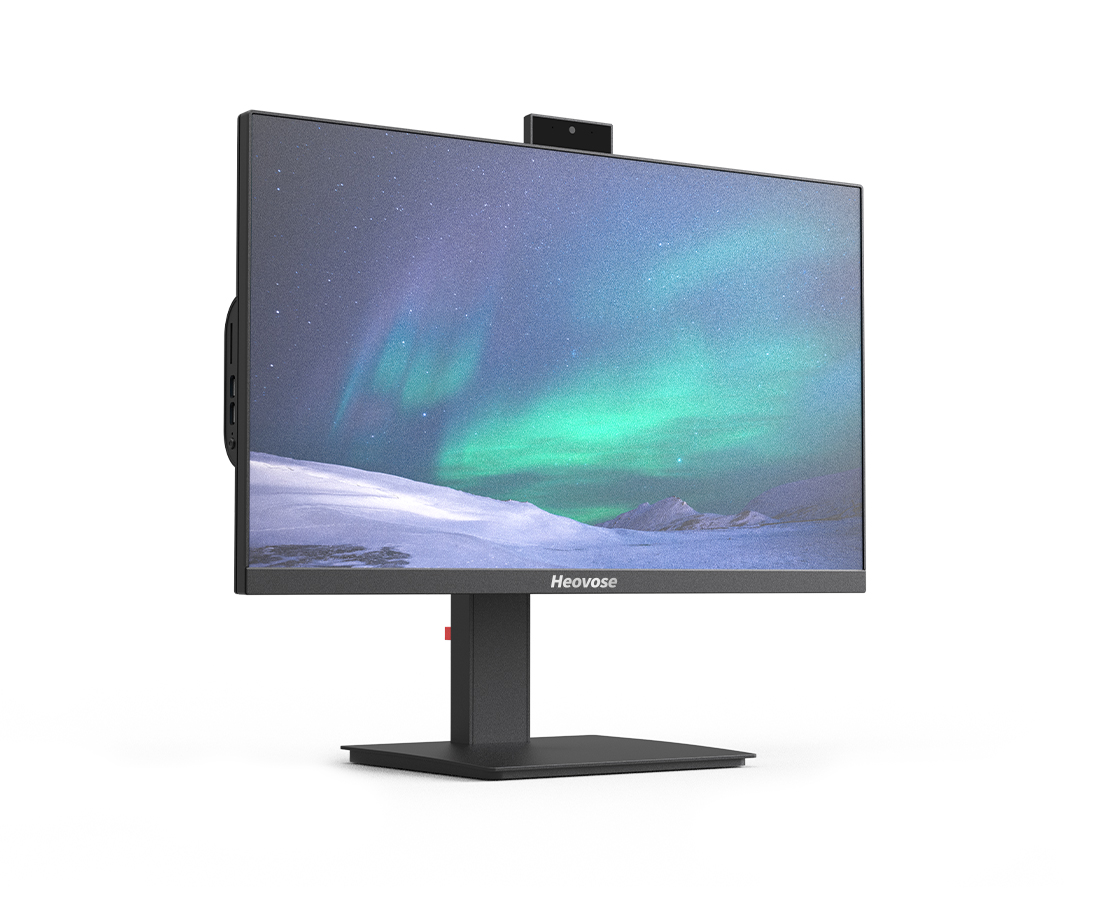

• This model can be installed the pop-up webcam on the top;

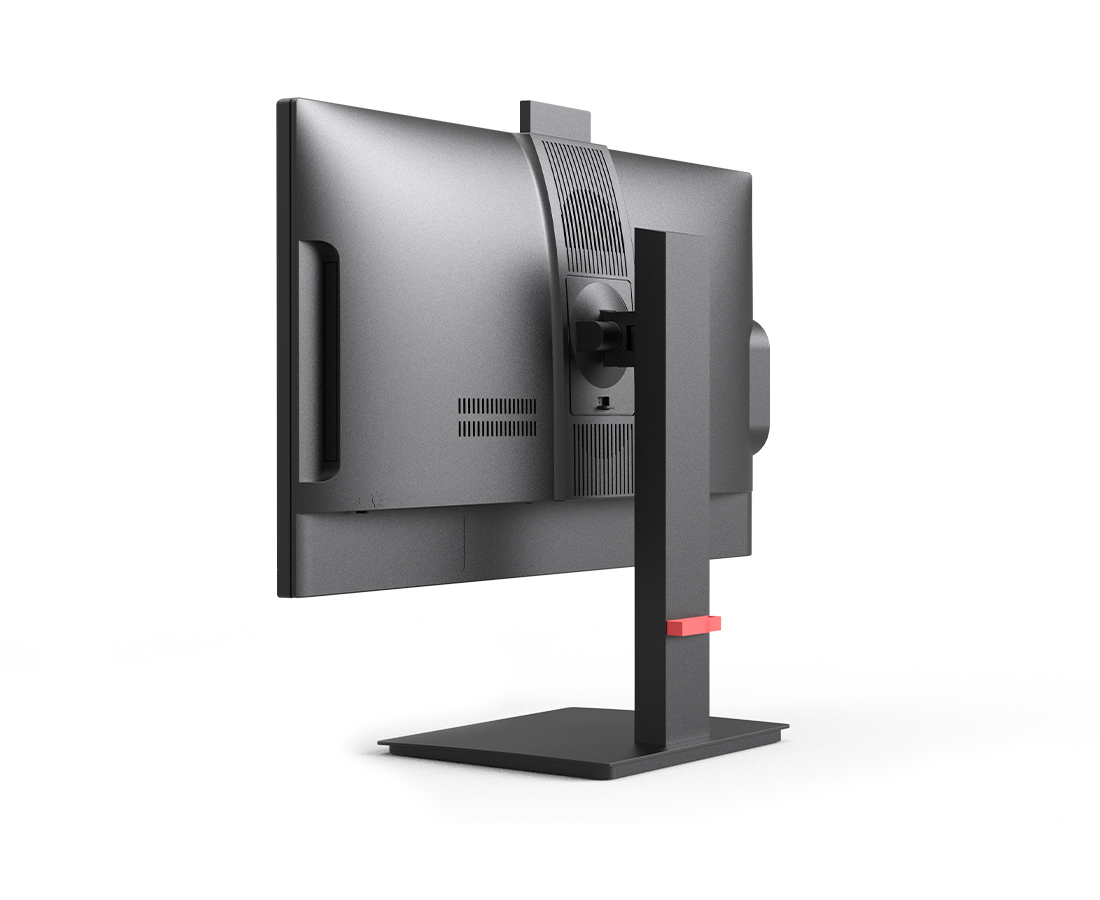

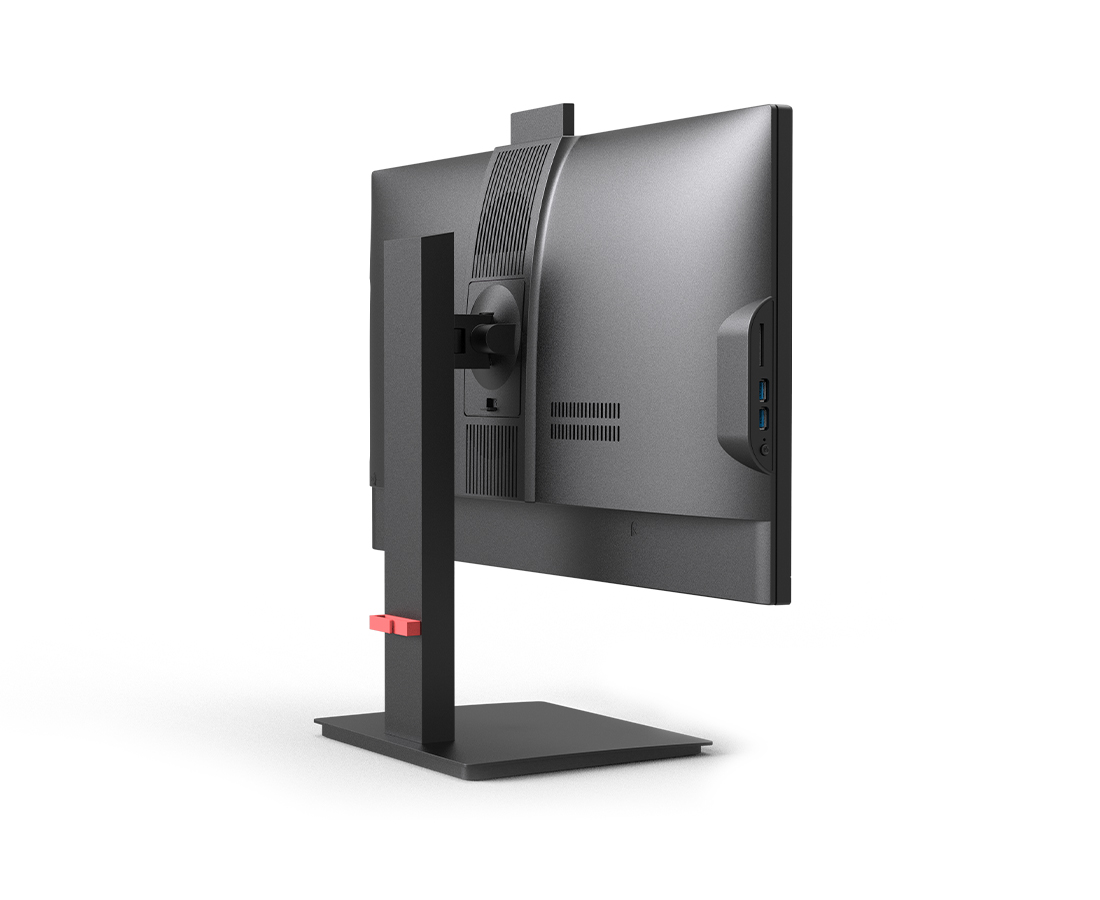

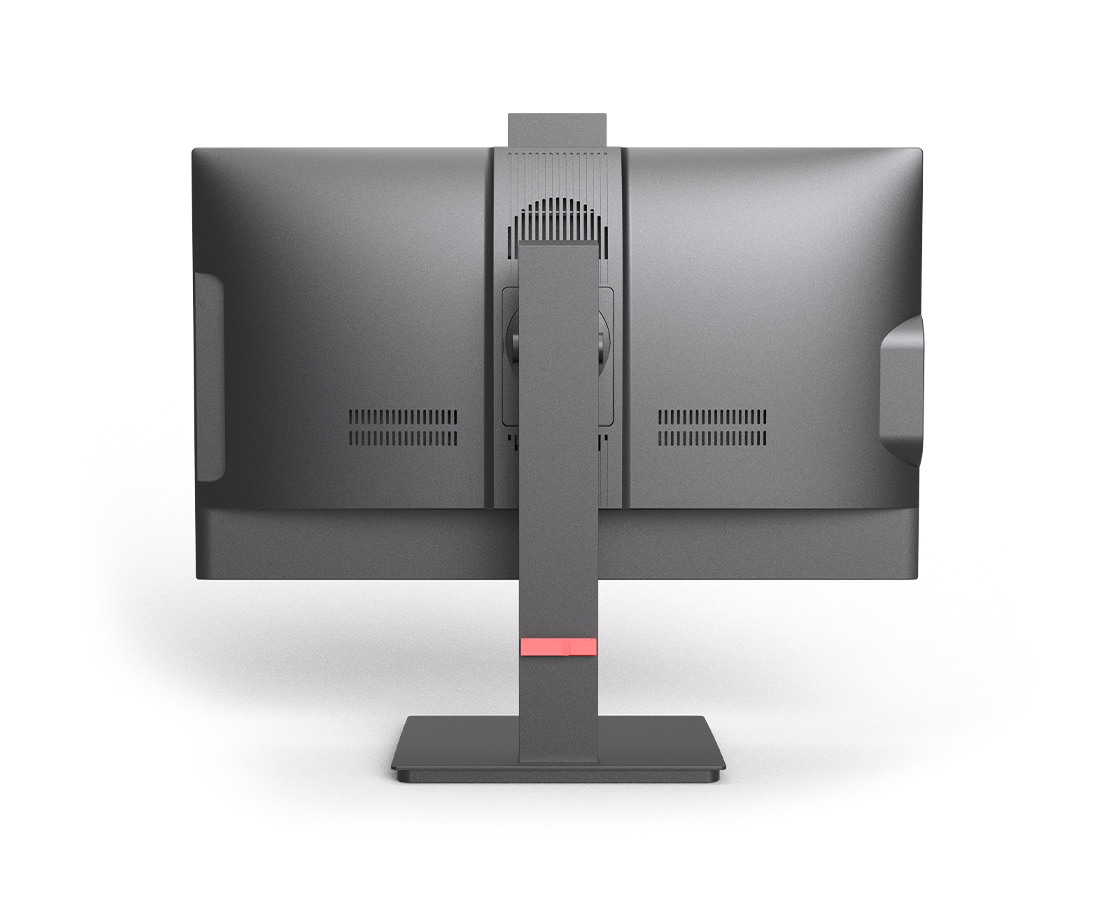

• The base can be vertically lifted and rotated to adjust the screen

Features
