General

Model

D3

Panel size

23.8 inch / 27 inch

Resolution

1920×1080 / 2560×1440（16:9）

CPU

Intel Core i3、i5、i7
Intel Celeron
Intel Pentium

RAM

4GB / 8GB / 16GB / 32GB

SSD

64GB / 128GB / 256GB / 512GB / 1TB

HDD

500GB / 1TB / 2TB

Graphics card

NVIDIA GeForce GTX1030 2G
NVIDIA GeForce GTX1050 2G
NVIDIA GeForce GTX1050TI 4G
NVIDIA GeForce GTX1650 4G
NVIDIA GeForce RTX3050 8G
Integrated Graphics

Multi-Media

High Definition Audio Codec; Stereo Speaker

System

Compatible with Win7/Win10/Win11

Mechanical

Product size

23.8inch:535(W)×325(S)×418(H) mm
27inch:615(W)×367(S)×461(H) mm

Graphics card size

Maximum size supported 235×115×38 mm

Material

Mg-Al alloy base ,ABS plastic shell

Color available

Black / White

Extensible

Camera

3.0MP/5.0MP/8.0MP（with Mic）Camera

Extended interface

2 × USB2.0

Connectivity

Network card

100/1000Mbps adaptive network card

WIFI

150Mbps wireless WiFi
(433Mbps dual band WiFi and WiFi 6 functions are optional)

Bluetooth

Default BT4.2 / Available BT5.0

Interface

1 × Power Port
1 × HDMI
1 × VGA(COM)
1 × LAN
4 × USB
1 × Audio Out
1 × Mic in

Power adapter

input：100-240v AC， 50/60Hz universal；

Package（1 unit）

Accessories

Power cable,Power adaptor

Package size

23.8inch:608(L)×208(D)×391(H)mm
27inch:690(L)×213(D)×436(H)mm

Weight

23.8inch:9kg
27inch:10kg

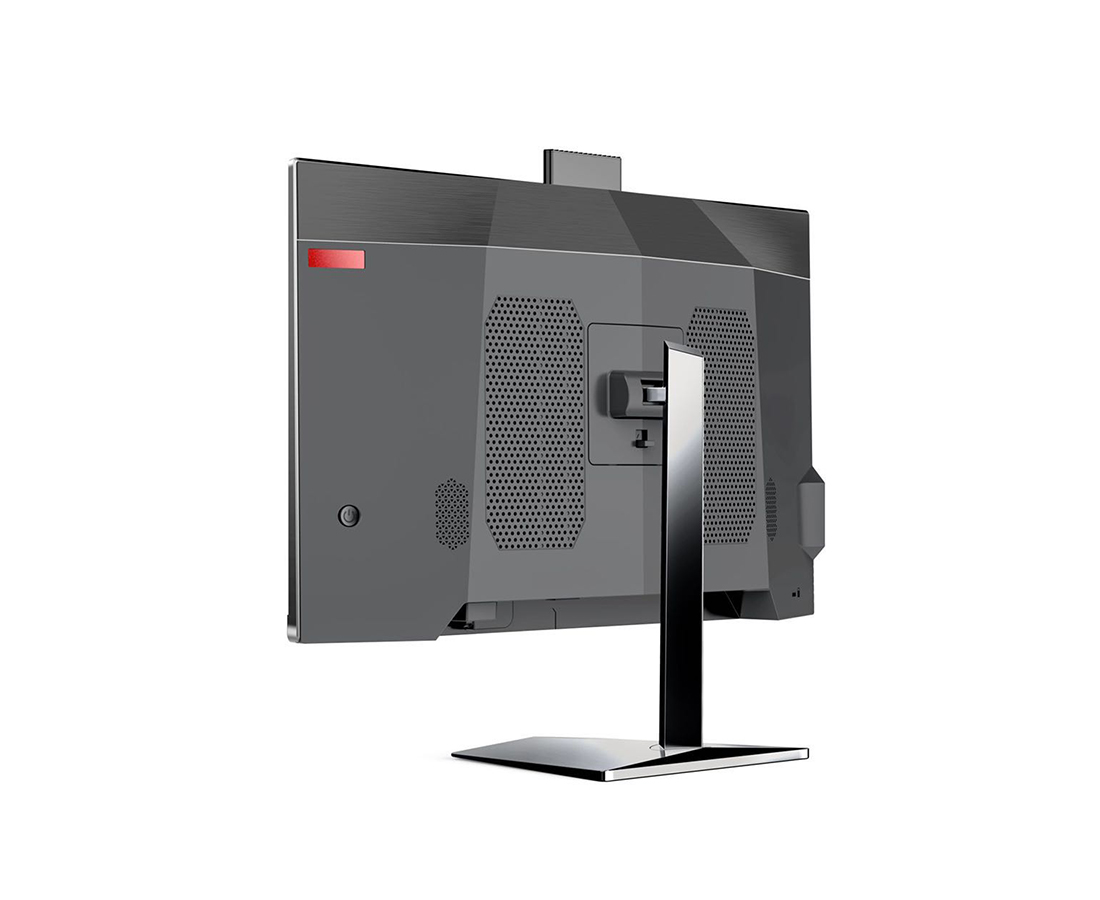

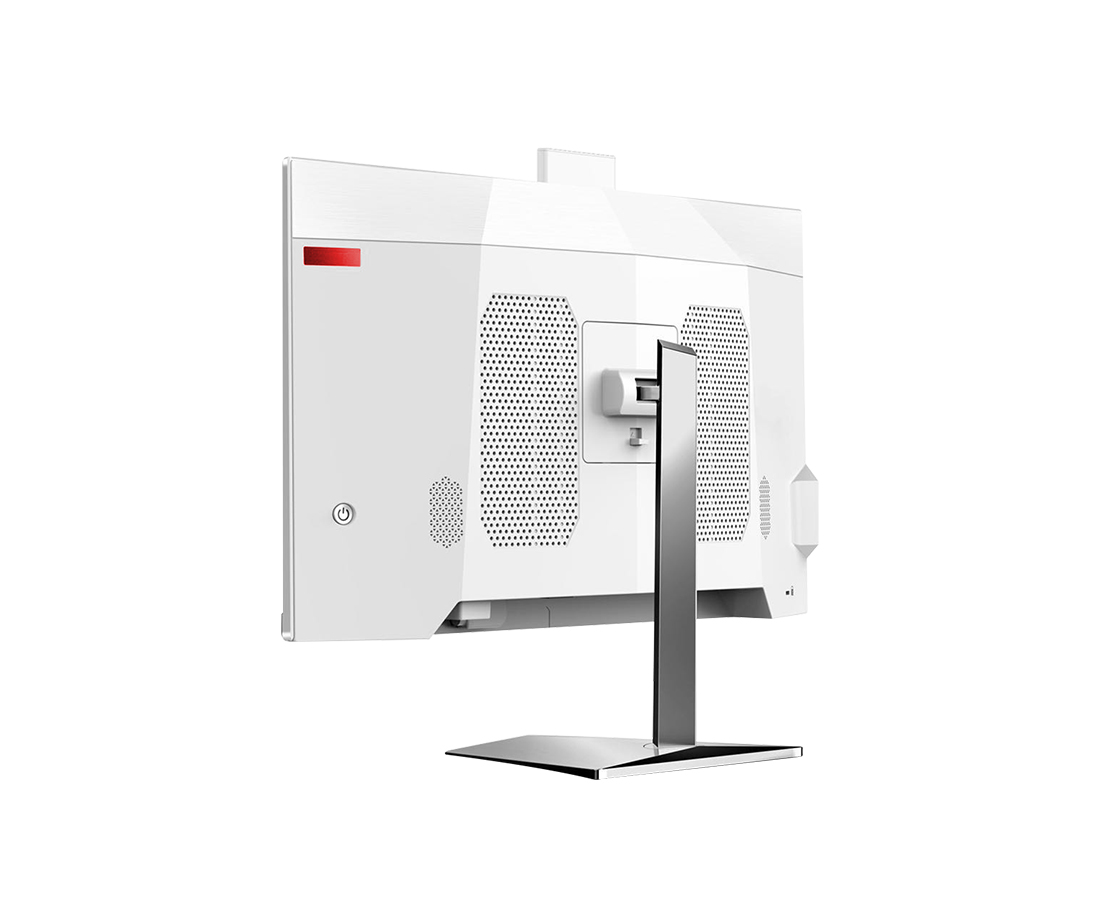

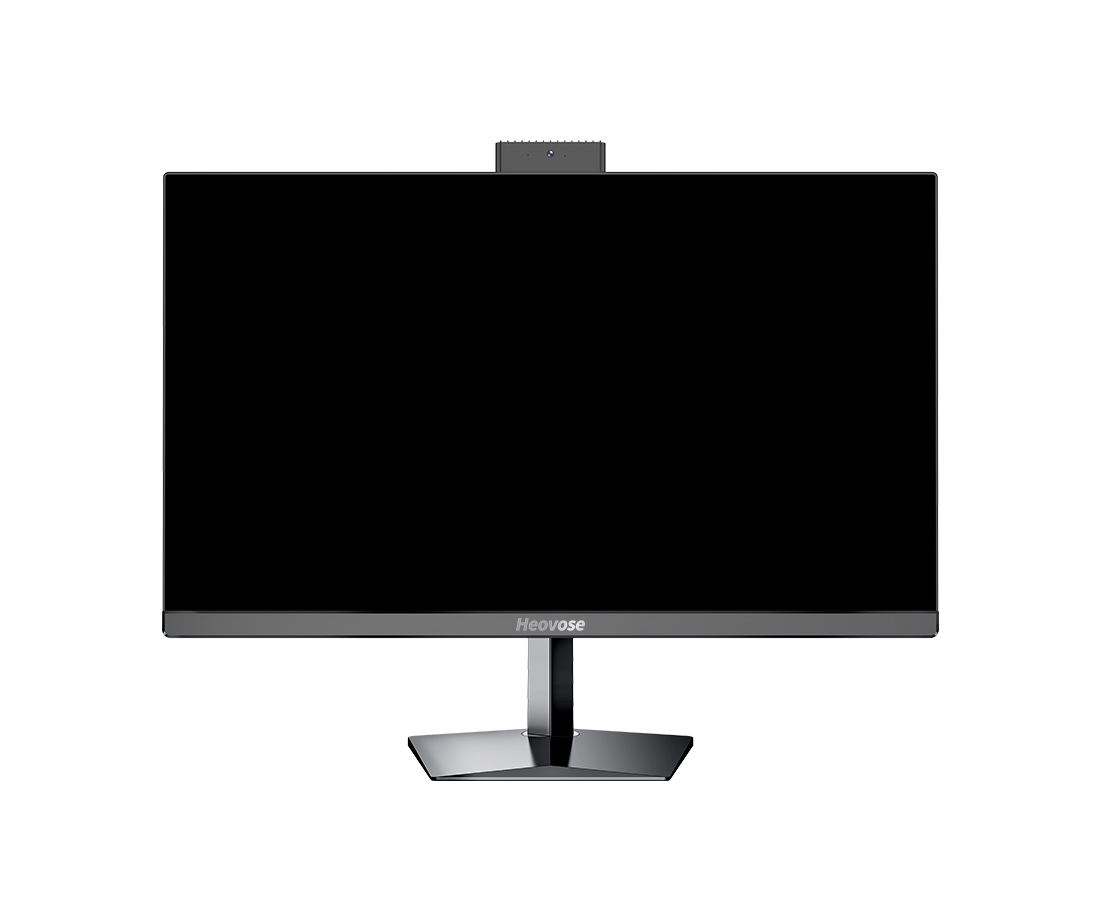

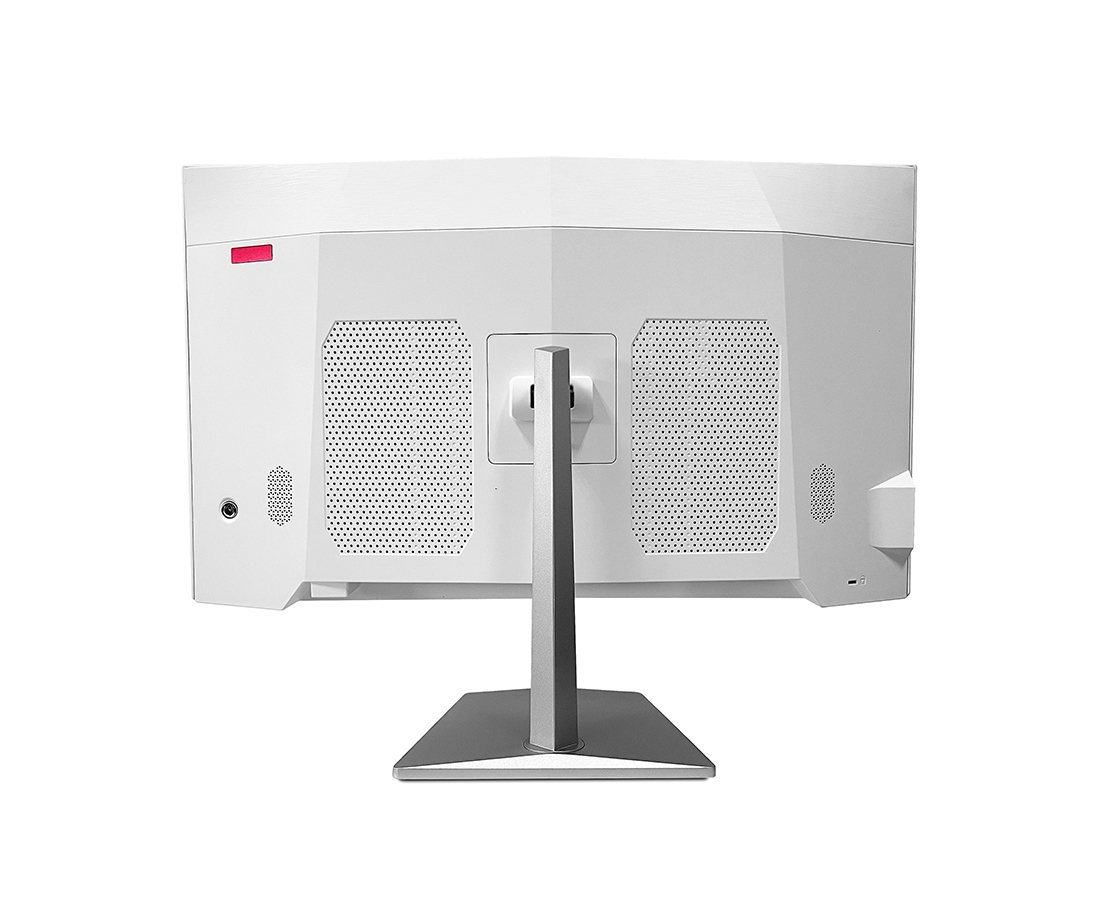

Gaming D3 Series All-in-one PC

GuangZhou Heovose Technology Co., Ltd. ꄲ ALL IN ONE PC ꄲ Gaming D3 Series All-in-one PC

• This model can be installed the pop-up webcam on the top, support double-mic ;
• it can install discrete graphics card, excellent performance, and 2K screen, it is a better choice for the game player and designer.;
• High performance graphics card can support the stronger rendering ability for the computer

Features
